Passive Avoidance - Step through - New Model, for Rats and Mice Featured

The Passive Avoidance Set-Up (step-trough method) by Ugo Basile, is an efficient and reliable instrument for the classic Passive Avoidance Test.

Multiple configurations can be controlled by the NEW  electronic with touch-screen, which encompsses a precision 8-pole shocker.

The P.A. set-up is part of UB conditioning-cage project; you buy a single touch-screen controller, and manage all UB cages. Ask for details!


Passive Avoidance Test is used to assess memory function based on the association formed between a specific environmental context, which the animal learns to avoid, and an aversive stimulus, represented by a mild foot shock. The tests are conducted in a two-compartment apparatus, where one is dimly lit and preferable to a rodent, and the other is brightly lit.

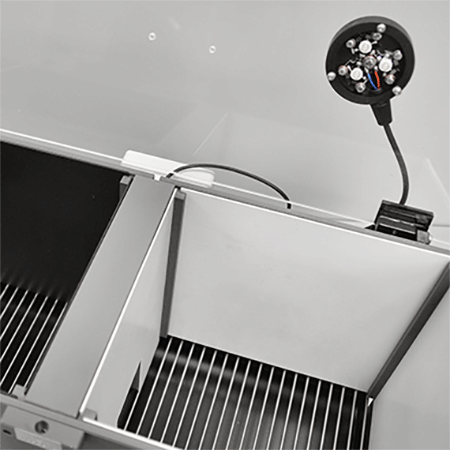

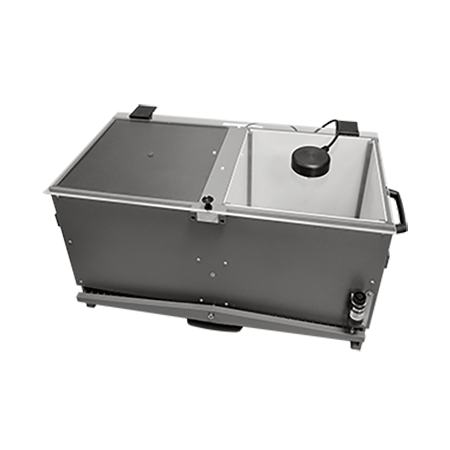

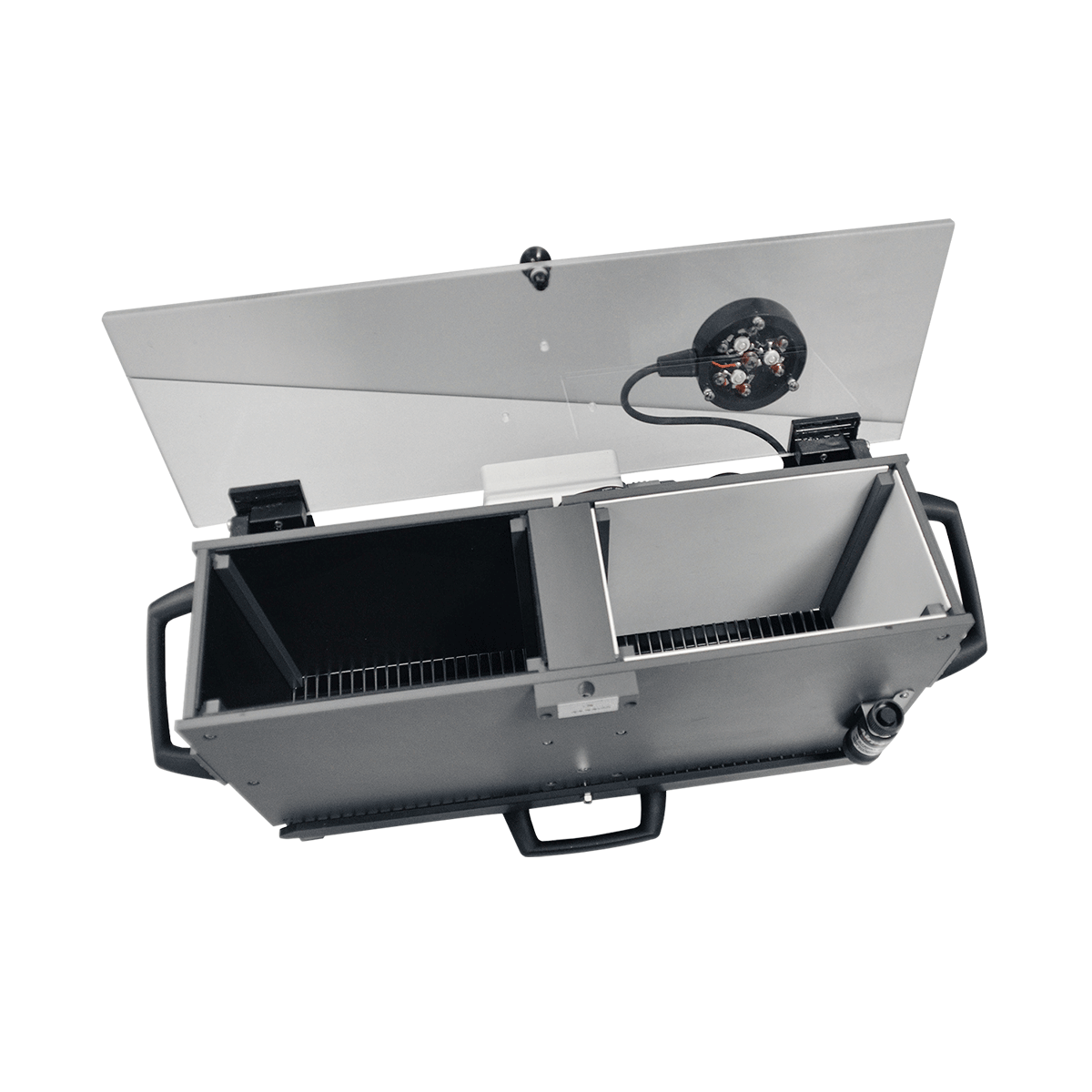

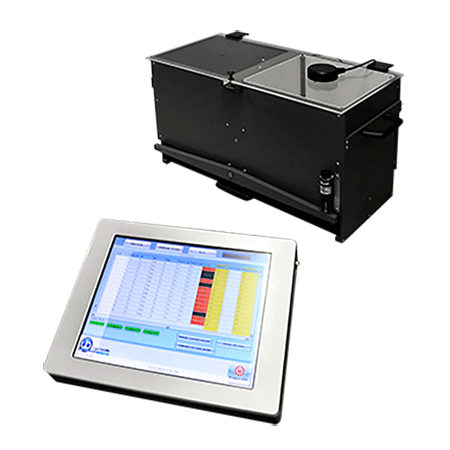

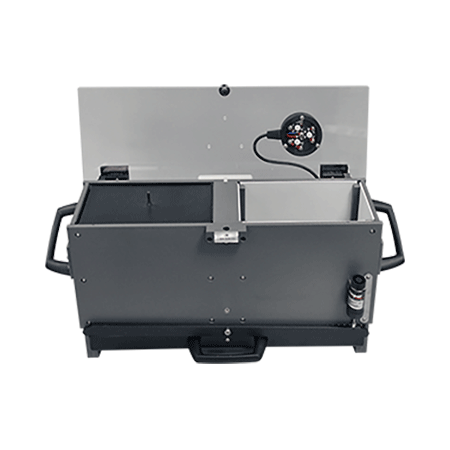

Ugo Basile Passive Avoidance set-up instrument basically consists of a Controller, and a Cage: a partition which embodies a sliding door divides the P.A. Cage into two compartments, one black and one white, brightly illuminated. The tilting floor ensures a simple and reliable detection mechanism to score the animal’s movement across the two compartments.The 40500-001 Programming/Recording Unit, encompasses all controls, incorporates a constant-current high precision 8-pole shocker, and manages data acquisition: data are stored insite the unit and can be downloaded via the USB key provided as standard, for further processing via Excel, Access, etc.

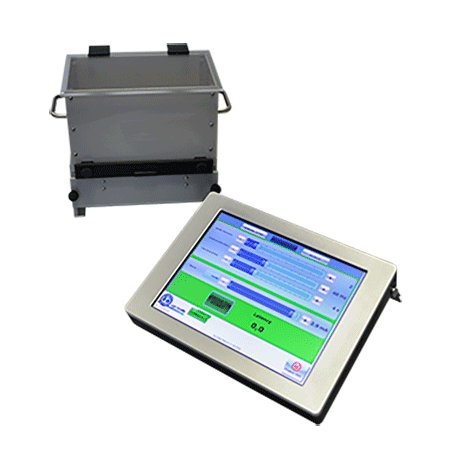

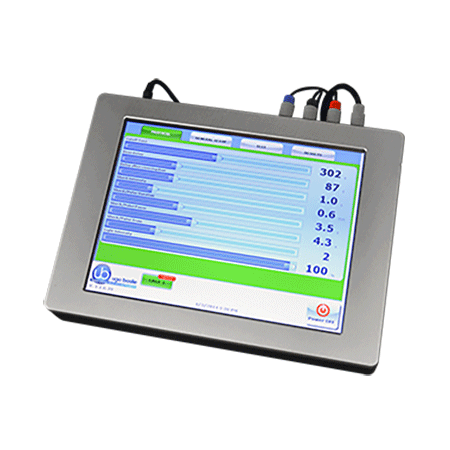

The Unit, which incorporates a 12” touch-screen, manages both Passive and Active Avoidance Tests. Up to 4 cages can be connected to the same Controller. If more than one cage is connected, an expansion box 40500-005 is required for each additional cage.

Remote Control feature will make remote service and software upgrades extremely simple!
