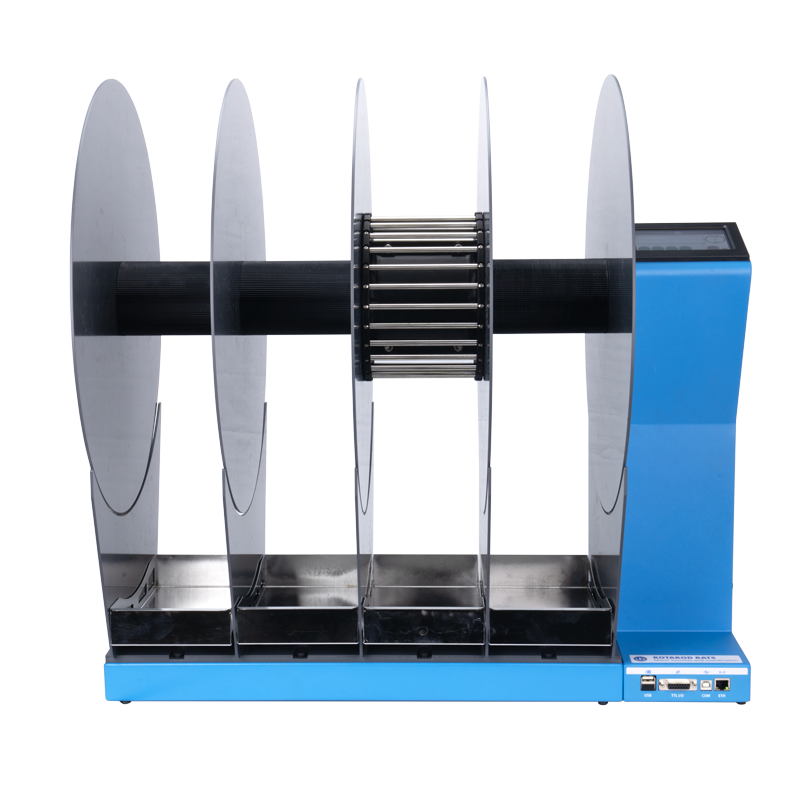

The complex wheel add-on for Large Rat RotaRod introduce an additional complexity element for the animal to be tested thanks to the asymmetrical and adjustable rungs which increase the test sensitivity and add a higher involvement of motor cortex and hippocampus, as compared to the classic rotarod test.
The Ugo Basile RotaRod is the 1st and original, invented after the Dunham and Miya method (1957) and today has more than 6,200 citations in the literature.

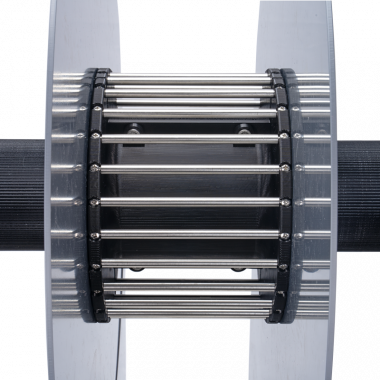

The complex wheels for Large Rat RotaRod include 26 removable rungs, which allow for complete control of the task difficulty and therefore of the engagement of motor cortex and hippocampus, in addition to the increase of the test sensitivity.
The complex wheels for Large Rat RotaRod are suitable only for Large Rat RotaRod SKU 47750-D01.
The complex wheels for Mouse and Rat RotaRod include removable bars, which allow for complete control of the task difficulty and therefore of the engagement of motor cortex and hippocampus, in addition to the increase of the test sensitivity.
| 47750-D01-327 Large Rat RotaRod Complex Wheel (26 bars) |
|
| Suitable for | Large Rat RotaRod SKU 47750-D01 |
| External diameter (where the rodent walks) | 180 mm |
| Internal diameter (where the complex wheel attaches to the lane of the RotaRod) | 80 mm |
| Width | 110 mm |
| No of bars | 26 |
| Distance between bars (if all bars are in place) | 19 mm |
| Weight | 1090 grams |
| Number of units to fill all RotaRod Lanes | 4 |
| Warranty | Large Rat RotaRod Complex Wheel is covered by a 12-month warranty + 12 after product registration |
What Nagai et al. showed in their 2017 paper is that mice undergoing complex wheel experiments consolidate during sleep a motor skill that engages motor cortex and hippocampus much more than in the traditional rotarod test.
This is potentially due to the increased complexity of movements that happen thanks to the irregular rung patterns in the complex wheel task.
| 47750-D01-327 | Large Rat RotaRod Complex Wheel (26 bars) |
Nagai et al. 2017, "Sleep consolidates motor learning of complex movement sequences in mice"; Sleep, 40 (2).
In addition to the one-year Regular Warranty and in addition to the one-year product registration extended warranty, Ugo Basile offers an Optional Extended Warranty that extends the warranty period for the product for additional one or two years called “UB Care12”/“UB Care24”. Customers may purchase the “UB Care” at the maximum of 3 months after buying. For more detailed information, please contact your local representatives.
