Animal
Mouse, Rat

Isolation Cubicle, sound-attenuating chamber for conditioning cages

Product Code:46590

The cubicle is a sound-attenuating chamber that isolates small animal subjects from distracting ambient light, sound and activity. For behavioral studies including operant behavior (Skinner), self-administration, etc.

High-level soundproof efficacy, noiseless fan, control box. Extra fixtures (speaker and video camera holder) for fear conditioning studies. Available in standard, large or custom sizes.

Model
Are you interested in training program?
Choose a model to get a quote...

Well built, many inclusions, spacious

  • Well-built, well-equipped cubicles can be used with Ugo Basile or other brand cages. Each cubicle includes:
    • High-tech insulating material and door seal for high-level sound-proof efficacy

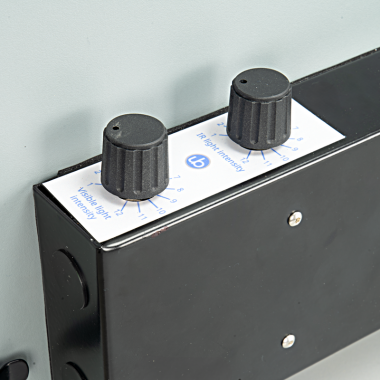

    • Dual LED light (visible and I.R.) regulated by dedicated controller
    • Noiseless fan for air intake and exhaust
    • Control box
    • Loudspeaker (Fear conditioning cubicle only)
    • Holder for a video-camera (Fear conditioning cubicle only)
  • Model options include:
    • Special model lined with lead sheets, to cut electromagnetic interference for sophisticated electrophysiology tests.
    • Custom-built versions. Choose color and size.
    • Porthole (optical or electronic) can be provided on request
  • The standard isolation cubicle is sized 50(w) x (40(d) x50 (h) cm. Interior is designed to maximize space for cages with measurements: 48.5(w) x38.5(d) x48.5(h) cm.

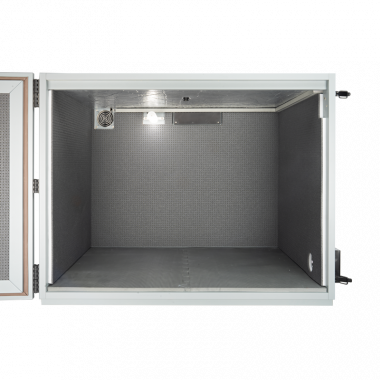

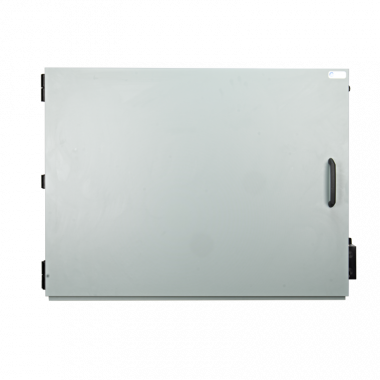

  • A larger XL model is available, with interior dimensions: 78(w)x58.5(d)x58.5(h)cm.



Features

Benefit

High-tech insulating material & door seal

High-level sound-proof efficacy

Dual Light

Visible and I.R. light, regulated by dedicated controller

Equipped with ventilation fan

For air intake and exhaust

Optional porthole available

Optical or electronic



General

Visible Light

0-100%

I.R. Light

0-100%

Sound (46000-590)

100Hz-18KHz, 0-100% (100%0100dB ±2dB)

White noise 0-100% (100%=72dB ±3dB)

Power

80V/240Vac, 50/60 Hz

Operating Temperature

10° to 40°C

Sound Level

Negligible (sound cue excluded)

Pollution Degree

≤ 2

Physical

Dimensions

Standard  50(w)x(40)d)x50(h)cm

XL         80(d)x35(w)x60.5(h)cm

Inside Dimensions

Standard  48,5(w)x38,5(d)x48,5(h)cm

XL         78(w)x58.5(d)x58.5(h)cm

Weight

Standard  28Kg

XL         40Kg

Shipping Weight

Standard  36Kg

XL         50Kg

Warranty

Warranty Isolation Cubicle is covered by a 12-month warranty + 12 after product registration
UB-Care Additional UB-Care can be added for other 12 or 24 months



Isolation Cubicle for Behavioural Cages

46590

Isolation Cubicle for Behavioral Cages, inside dimensions 48,5(w)x38,5(d)x48,5(h) cm, with Visible/IR lights, fan and control box 46000-150

46590-PB

Isolation Cubicle for Behavioral Cages, inside dimensions 48,5(w)x38,5(d)x48,5(h) cm, with light (visible and IR), fan and control box 46000-150. With special lead sheets, to cut electromagnetic interference

46690

Isolation Cubicle XL for Behavioral Cages, inside dimensions 78(w)x58.5(d)x58.5(h)cm,  complete with Visible/IR lights, fan and control box 46000-150

46690-PB

Isolation Cubicle XL for Behavioral Cages, inside dimensions 78(w)x58.5(d)x58.5(h)cm,  complete with Visible/IR lights, fan and control box 46000-150. With special lead sheets, to cut electromagnetic interference

Isolation Cubicle SPECIFIC FOR FEAR CONDITIONING SET-UP

46000-590

Isolation Cubicle for Fear Conditioning Cages, including dual visible/I.R. light, speaker, and fan. Controlled by FC hardware and software. Inside dimensions 48,5(w)x38,5(d)x48,5(h)cm

46000-590-PB

Isolation Cubicle for Fear Conditioning Cages, including dual visible/I.R. light, speaker, and fan. Controlled by FC hardware and software. Inside dimensions 48,5(w)x38,5(d)x48,5(h)cm. With special lead sheets, to cut electromagnetic interference

46000-580

Additional Isolation Cubicle for Fear Conditioning Cages, including dual visible/I.R. light, speaker, and fan. Controlled by FC hardware and software. Inside dimensions 48,5(w)x38,5(d)x48,5(h)cm, Slave-controller on board (expansion box)

46000-580-PB

Additional Isolation Cubicle for Fear Conditioning Cages, including dual visible/I.R. light, speaker, and fan. Controlled by FC hardware and software. Inside dimensions 48,5(w)x38,5(d)x48,5(h)cm, Slave-controller on board (expansion box). With special lead sheets, to cut electromagnetic interference
